Before delving into the significance of the Battery Slitting Machine in lithium-ion battery (LIB) manufacturing, it's essential to understand the battery itself.
The quality of these electrodes is profoundly influenced by the slitting process. Precise, accurate, and clean slitting is essential to prevent damage to the coating and foil. One of the primary challenges in slitting is the formation of burrs—undesirable material projections on the edges or corners of the foil resulting from the cutting action. Burrs can compromise dimensional accuracy, increase the risk of short circuits, pose safety hazards to operators, and cause wear or damage to cutting tools. Therefore, minimizing burr formation is crucial for producing high-quality LIB electrodes. Achieving this requires selecting the appropriate slitting method and meticulously controlling specific cutting parameters.
Key Functions and Features
CCD Detection System:
High-Resolution Monitoring: Utilizes a high-resolution CCD system for real-time online monitoring of both front and back electrode coils.
Defect Identification: Swiftly detects defective pole pieces, automatically labels them, and initiates corrective actions.
Closed-Loop Correction: Employs an automatic closed-loop mechanism to adjust the slitting area with remarkable precision, reducing waste and enhancing product quality.
Unwinding Mechanism with Smart Controls:
Automatic Tension Control: Features an automatic closed-loop tension control system ensuring consistent tension during unwinding.
AVG Trolley Docking: Facilitates seamless material loading with AVG trolley docking.
Ultrasonic Coil Diameter Monitoring: Guarantees uninterrupted operation and precise material handling, minimizing downtime.
Advanced Dust Removal System:
Negative Pressure Vacuuming: Incorporates a unique negative pressure vacuuming cavity structure to effectively remove dust particles.
Static Elimination: Equipped with a static elimination device to neutralize static charges, preserving the integrity of delicate electrode materials and promoting a safer work environment.
Independent Edge Material Pulling Mechanism:
Intelligent Handling: Independently pulls both sides of the material with precise tension control to prevent deformation and ensure accurate slitting.
Automatic Edge Collection: Separate edge bins automatically collect trimmed materials, streamlining workflow and facilitating recycling or repurposing of scraps for an eco-friendly operation.
Efficiency Enhancement
By incorporating intelligent control and automation technologies, the Battery Slitting Machine significantly minimizes downtime, thereby boosting overall manufacturing efficiency. Its rapid switching capability allows for seamless transitions between different cutting modes to accommodate diverse production requirements. Additionally, the machine's energy-efficient design effectively reduces operating costs, supporting businesses in achieving sustainable development goals.

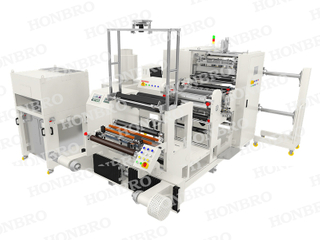

The Battery Slitting Machine, exemplified by our Advanced CCD-Equipped Slitter 300 Type, seamlessly combines advanced technology, flexible adaptability, and exceptional operational efficiency. It stands as an ideal solution for battery manufacturing companies seeking high-quality, large-scale slitting capabilities. Whether for standard production or customized requirements, our Battery Slitting Machine provides reliable support, empowering clients to excel in the competitive LIB market landscape.
