How To Reduce Burrs And Dust During Electrode Slitting: Best Practices

Views: 0     Author: Site Editor     Publish Time: 2025-06-20      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

In the high-precision world of lithium-ion battery (LIB) manufacturing, lithium battery electrode slitting is a critical process that directly impacts product quality, safety, and production efficiency. Among the various challenges faced during electrode slitting, the generation of burrs and dust particles poses significant threats to both performance and safety. Burrs can cause short circuits and reduce battery reliability, while dust contamination can compromise the electrochemical properties of the cell.



Why Burrs and Dust Are Critical Concerns in Electrode Slitting

Before we dive into the best practices, it’s essential to understand why burrs and dust are so detrimental to lithium-ion battery production.



What Are Burrs?

Burrs are tiny metallic projections formed at the edges of electrode materials during cutting. They occur when the cutting blade does not cleanly shear through the foil, causing the material to deform or fragment.



What Are the Risks of Burrs?

  • Short Circuits: Burrs can pierce the separator between the anode and cathode, leading to internal short circuits.

  • Mechanical Failure: Rough edges increase wear on winding machines and spacers during assembly.

  • Safety Hazards: Burrs can trigger thermal runaway and create fire risks if they cause internal damage to the cell.



What Are the Risks of Dust?

  • Electrochemical Contamination: Dust particles can contaminate the active material surface and reduce capacity.

  • Poor Adhesion: Dust buildup can weaken adhesion between the coating and the foil.

  • Reduced Cycle Life: Contaminated electrodes often show inconsistent electrochemical behavior and shorter lifespan.

Minimizing these defects is essential for ensuring high-quality, reliable, and safe lithium-ion batteries.



Best Practices to Reduce Burrs During Electrode Slitting

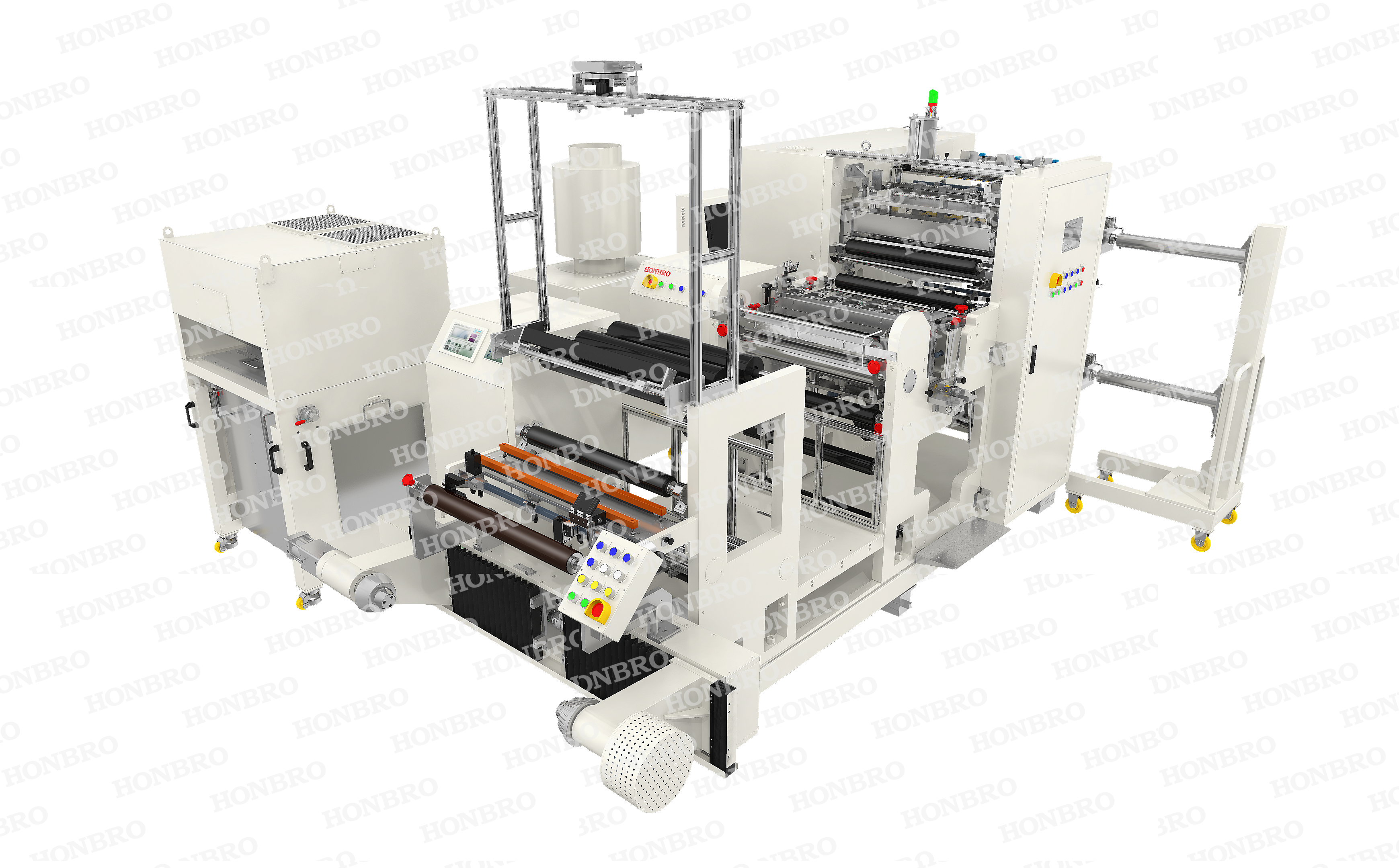

Use High-Precision Slitting Machines

Investing in high-quality slitting machines is the first and most effective step. Advanced slitting systems are designed to operate at micron-level accuracy and incorporate burr-control features.

  • Tight Tolerance Blades: Ensure the use of ultra-sharp blades with narrow tolerances.

  • Stable Blade Alignment: Misaligned blades contribute significantly to burr formation.

  • Automated Blade Adjustment: Some machines automatically adjust blade positions during long production runs to maintain precision.



Optimize Blade Type and Cutting Method

Choosing the correct slitting technique and blade type can greatly reduce mechanical stress on the foil and coating.

  • Razor Slitting: Best for thin foils and lower burr formation but may wear quickly.

  • Shear Slitting: Offers excellent control for thicker materials and high-speed cutting.

  • Score Cutting: Less recommended due to higher burr risk and material distortion.

Regular blade maintenance and timely replacement are also essential. Dull blades are one of the leading causes of burrs.



Control Cutting Speed and Tension

A mismatch between cutting speed and web tension can generate uneven edges and burrs.

  • Too High Speed: Leads to jagged cuts and material tearing.

  • Too Low Tension: Causes the material to buckle or shift during cutting.

  • Closed-Loop Tension Systems: Ensure stable web tension throughout the process, reducing burr formation.

Modern machines use servo-driven unwinding and rewinding systems with real-time tension sensors to maintain consistency.



Implement CCD Visual Inspection Systems

Real-time monitoring using CCD (Charge-Coupled Device) cameras can detect burrs and trigger corrective actions before defects accumulate.

  • Front and Back Inspection: Detects burrs on both sides of the foil.

  • Automatic Marking: Defective segments are flagged and separated for manual review or reprocessing.

  • Closed-Loop Feedback: Automatically adjusts the slitting path or blade angle to reduce burrs in real-time.



Monitor Environmental Conditions

Temperature and humidity affect the mechanical properties of the foil and coating.

  • Low Humidity: Can increase brittleness, leading to more burrs during cutting.

  • High Temperature: May soften the coating and cause smearing or uneven cuts.

Maintain a clean, climate-controlled slitting environment for optimal performance.



Best Practices to Minimize Dust Generation and Spread

Integrate a Dust Collection System

Modern slitting machines are equipped with negative-pressure dust removal systems.

  • Vacuum Chambers: Suck up dust at the cutting point before it spreads.

  • Filter Units: Use HEPA filters or cyclone separators to trap fine particles.

  • Isolated Chambers: Prevent dust from contaminating other machine components or electrode surfaces.

Regular cleaning of the dust collection system ensures it remains effective over time.



Use Static Elimination Devices

Static electricity builds up during high-speed slitting and attracts dust to the electrode surface.

  • Anti-Static Bars: Installed near the slitting blade to neutralize surface charges.

  • Ionizing Fans: Remove static buildup across the entire cutting zone.

  • Grounding Mechanisms: Proper machine grounding reduces electrostatic adhesion of particles.



Apply Protective Coatings and Surface Treatments

Some battery manufacturers pre-treat the coating to resist dust adhesion and flaking.

  • Surface Hardening: Makes the coating more resistant to dust-producing damage.

  • Anti-Dust Coatings: Help minimize particle generation during cutting.

However, these must be compatible with the battery chemistry and not interfere with performance.



Ensure Smooth Material Feeding

Rough handling or jerky feeding can cause delamination or coating cracks, releasing dust.

  • AVG Trolley Docking: Automatically loads material rolls to prevent manual damage.

  • Roller Calibration: Maintain perfectly aligned rollers to prevent material wobble.

  • Soft Start Systems: Reduce mechanical shocks during startup.



Benefits of Reducing Burrs and Dust in Electrode Slitting

When burrs and dust are minimized, the benefits span across the entire battery production line:

  • Improved Safety: Lower risk of internal shorts, overheating, and battery fires.

  • Enhanced Product Quality: Better electrochemical stability, longer cycle life, and consistent performance.

  • Reduced Waste: Fewer defective electrodes mean higher material yield.

  • Lower Maintenance: Less dust buildup leads to longer equipment lifespan and fewer breakdowns.

  • Faster Production: Cleaner slitting results in smoother downstream processes like winding, stacking, and packaging.


Conclusion

In the high-stakes world of lithium-ion battery manufacturing, precision is not optional—it’s essential. Reducing burrs and dust during the electrode slitting stage ensures safer batteries, longer life cycles, and more efficient production lines.

From choosing the right blade and tension system to implementing real-time defect detection and dust collection, every detail counts. And with the support of trusted industry leaders like www.battery-productionline.com, manufacturers can confidently produce world-class batteries that meet the highest performance and safety standards.
