In the fast-growing lithium-ion battery (LIB) industry, every step of the production process matters. From material selection to final packaging, the performance and safety of a battery depend on strict control of manufacturing quality. One often overlooked but critically important step is lithium battery electrode slitting.
Electrode slitting may seem like a simple mechanical process, but in fact, it plays a crucial role in determining how well a battery performs and how safe it is to use. In this article, we explore the importance of precision slitting in LIB production and how it affects battery efficiency, reliability, and long-term safety.
What is Lithium Battery Electrode Slitting?
Lithium battery electrode slitting is the process of cutting wide rolls of coated electrode material into narrower strips. These strips are then used in cell assembly. The electrodes typically consist of aluminum foil for the cathode and copper foil for the anode, both coated with active materials.
The slitting step occurs after coating and drying and before winding or stacking the electrodes. The objective is to achieve straight, clean, and uniform edges without damaging the coating or the foil underneath. Achieving this level of precision is essential because errors in this stage can cause serious issues down the line.
The Role of Precision in Electrode Slitting
Dimensional Accuracy
Precision slitting ensures that each electrode strip is cut to an exact width, with minimal variation. Consistent width across all electrode pieces leads to better alignment during cell assembly, which improves energy density, current distribution, and mechanical balance inside the battery. Dimensional inaccuracy, even by a small margin, can lead to electrode misalignment, reduced capacity, and lower cycle life.
Burr Reduction
One of the biggest challenges in electrode slitting is the formation of burrs. Burrs are tiny metallic protrusions or sharp edges formed during cutting. These defects are dangerous because they can pierce the separator between the anode and cathode, leading to short circuits or even thermal runaway.
High-quality slitting machines use optimized blade designs and tight control of tension and cutting speed to reduce burr formation. Modern slitting systems also integrate CCD camera systems that monitor burrs in real time and trigger corrective action.
Coating Integrity
The coating on the electrode surface contains the active material responsible for energy storage. If the slitting process damages this coating by chipping, cracking, or flaking, it reduces the usable area of the electrode. This not only affects capacity but also leads to material contamination and internal defects.
Precision slitting machines apply even pressure during cutting to preserve the coating and avoid material waste. The result is a smooth, intact electrode surface that performs better in electrochemical reactions.
Tension Control
Maintaining proper tension during slitting is essential for foil stability and cutting accuracy. Too much tension can stretch or tear the foil, while too little can cause wrinkles or misalignment. Advanced slitting machines are equipped with automatic tension control systems and ultrasonic sensors that adjust tension based on the roll diameter and material properties. This helps maintain consistent material flow and high cutting precision throughout the production process.
How Slitting Quality Affects Battery Performance
The quality of the slitting process has a direct impact on battery performance. Here are several key performance areas affected by slitting precision:
High energy density: When electrodes are cut with consistent width and clean edges, they can be wound or stacked more tightly. This allows for better use of internal space, resulting in higher energy density without increasing battery size.
Improved cycle life: Well-slitted electrodes are less likely to cause internal short circuits or mechanical stress. This contributes to longer cycle life by minimizing structural degradation and capacity loss over time.
Lower internal resistance: Smooth electrode edges and intact coatings reduce electrical resistance during charging and discharging. This helps maintain high efficiency and supports fast-charging capabilities.
Stable electrochemical behavior: Precision slitting ensures uniform surface area and thickness, which improves current distribution during battery operation. This leads to more stable voltage output and balanced cell performance.
How Slitting Quality Affects Battery Safety
Beyond performance, slitting accuracy also plays a crucial role in battery safety. Lithium-ion batteries can be sensitive to mechanical and electrical faults, and poor slitting increases the risk of dangerous failures.
Short circuit prevention: Burrs and misaligned edges are major causes of internal short circuits. Precision slitting minimizes these defects and prevents the electrodes from touching or damaging the separator.
Thermal management: When electrodes are cut properly, the battery has better structural stability and lower chances of localized overheating. This helps reduce the risk of thermal runaway, which is a serious hazard in battery packs.
Contamination control: Poor slitting can create dust, particles, and flakes from the coating material. These contaminants can enter the battery and trigger chemical reactions or electrical faults. Advanced slitting systems include dust removal units and static control to maintain cleanliness.
Operator safety: High-speed slitting machines can generate static electricity, sharp edges, and airborne particles. Precision equipment is designed with static eliminators, negative pressure dust removal, and enclosed cutting chambers to protect operators and maintain a safe working environment.

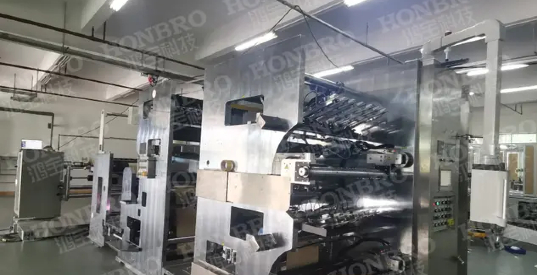

Features of Modern Precision Slitting Machines
Battery manufacturers now rely on advanced slitting machines to meet the growing demand for high-performance and safe lithium-ion batteries. Some of the most important features of these machines include:
CCD vision inspection: High-resolution camera systems can detect surface defects, misalignment, and burrs in real time. The system provides instant feedback and adjusts the cutting path automatically to correct errors.
Smart tension control: Using closed-loop systems, the machine can maintain optimal tension during the entire slitting process, even as the roll diameter changes. This prevents material deformation and ensures smooth cutting.
Ultrasonic coil monitoring: By measuring the diameter of electrode rolls, the system can adjust speed and tension automatically. This helps improve stability and reduce downtime.
Dust and static control: Slitting machines use vacuum systems to remove particles and dust generated during cutting. Static elimination devices prevent charge build-up, which can attract contaminants or create electrical sparks.
Edge waste collection: Precision slitting systems are equipped with independent mechanisms to collect edge waste efficiently. This promotes recycling and reduces environmental impact while keeping the workspace clean.
Application in Different Industries
Precision lithium battery electrode slitting is essential across a wide range of industries that rely on lithium-ion technology. For electric vehicles, the battery cells must deliver long range, fast charging, and safety. Cleanly slitted electrodes help achieve those performance goals by ensuring consistent energy output and structural integrity.
In consumer electronics, where compact and lightweight batteries are required, slitting precision allows manufacturers to produce slim batteries without compromising safety. Similarly, energy storage systems used in solar and wind installations demand high cycle life and minimal failure rates, both of which benefit from well-executed electrode slitting.
Medical devices and aerospace applications have even stricter requirements, where safety and reliability are paramount. In these fields, any defect introduced during slitting can lead to mission failure or safety incidents, making precision equipment a necessity.
Partnering with a Trusted Equipment Provider
To truly benefit from precision lithium battery electrode slitting, manufacturers need to work with reliable equipment suppliers who understand the technical and operational demands of battery production.
One such trusted partner is www.battery-productionline.com, a professional provider of advanced battery production equipment, including high-precision slitting machines. Their systems are engineered with intelligent automation, real-time monitoring, and comprehensive safety features to help you produce superior-quality electrodes while maximizing efficiency and minimizing operational risks.
Whether you are producing lithium batteries for EVs, consumer electronics, or energy storage systems, battery-productionline.com offers custom-tailored solutions that meet the highest industry standards. Visit their website today to explore more about their cutting-edge slitting machines and how they can help your business excel in the competitive battery market.
Conclusion
As the global demand for lithium-ion batteries continues to grow, battery manufacturers are under pressure to deliver products that are not only high-performing but also safe and durable. Precision in lithium battery electrode slitting is a key part of meeting that challenge.
By minimizing burrs, protecting electrode coatings, and ensuring dimensional accuracy, modern slitting machines help improve energy density, extend cycle life, and enhance safety. Partnering with a company like battery-productionline.com ensures that you have the right tools and support to stay ahead in the evolving battery industry.
