In the production of batteries, particularly lithium-ion batteries, electrode coating is a crucial step that directly impacts the performance, efficiency, and longevity of the battery. Electrode coating machines are used to apply a thin, even layer of active materials onto the electrode substrates, such as copper or aluminum foil, to create the electrodes that will store and release energy. These machines play an essential role in ensuring uniformity and precision, which are critical for achieving high battery capacity and stability. Given the importance of the coating process, a key question arises: What materials are used in electrode coating machines to ensure optimal performance and efficiency in battery production?

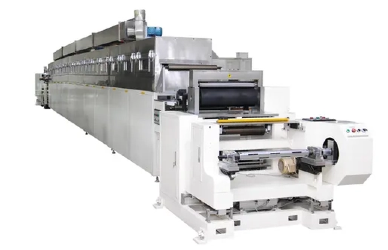

Overview of Electrode Coating Machines
Electrode coating machines are vital components in the production process of batteries, especially lithium-ion batteries. These machines are responsible for applying a precise and uniform layer of active materials onto a conductive substrate, such as copper for anodes or aluminum for cathodes. The uniform coating of these materials is crucial for ensuring that the final battery performs efficiently, with high energy density, long lifespan, and reliable stability.
1.Functionality and Working Principles
Electrode coating machines operate by applying a slurry mixture, which consists of active materials (like lithium compounds), binders (such as PVDF), conductive additives (like carbon black), and solvents (like NMP), onto the surface of the substrate. The coating process is typically achieved using techniques such as doctor blade coating, slot-die coating, or gravure coating, which help spread the slurry evenly. The machine’s role is to ensure that the coating is applied uniformly, maintaining the correct thickness and avoiding defects that could compromise battery performance.
Once the slurry is applied, the coated substrate is then dried in a controlled environment to remove excess solvent, ensuring that the electrode retains its structural integrity. The drying process is also critical for ensuring that the binder and active materials adhere properly to the substrate.
2.Role in Battery Production
In battery production, electrode coating machines are crucial for ensuring that the electrodes meet the required specifications for capacity, stability, and efficiency. The quality and uniformity of the electrode coating directly affect the electrochemical performance of the battery. A consistent coating thickness helps improve energy density, charge/discharge efficiency, and cycle life, while also preventing issues like short-circuiting or reduced battery capacity.
Moreover, the precision of the coating process contributes to the overall consistency and scalability of battery production. Electrode coating machines ensure that each battery cell is manufactured to the same high standards, which is essential in industries like electric vehicles, consumer electronics, and energy storage systems, where performance and reliability are key.
Common Materials Used in Electrode Coating
In the production of battery electrodes, the materials used in the coating process are critical for ensuring the performance, durability, and efficiency of the final battery. The primary materials involved in electrode coatings are conductive materials, binder materials, solvents, and fillers. Each of these plays a unique role in the performance and longevity of the electrode.
1.Conductive Materials
Examples: Carbon black, conductive polymers
Role and Function:
Conductive materials are essential in electrode coatings because they enhance the electrical conductivity of the electrode. Carbon black is one of the most commonly used conductive materials in electrode slurries. Its primary function is to improve the electron flow between the active materials and the conductive substrate (such as copper or aluminum foil). Conductive polymers, like polyaniline or polyacetylene, are also used for their ability to conduct electricity while offering flexibility and stability. These materials ensure that the electrode can efficiently transfer electrons, enabling the battery to store and release energy effectively. Without proper conductive materials, the battery would suffer from poor energy density and low efficiency.
2.Binder Materials
Examples: Polyvinylidene fluoride (PVDF)
Role and Function:
Binders are crucial for holding the active materials together on the electrode surface and ensuring that they adhere properly to the conductive substrate. Polyvinylidene fluoride (PVDF) is one of the most widely used binders due to its excellent chemical resistance, mechanical strength, and good adhesion properties. The binder prevents the active materials from separating during the charging and discharging cycles of the battery, which can otherwise lead to performance degradation. Additionally, the binder helps maintain the structural integrity of the electrode, which is essential for long-term battery stability. It improves adhesion between the electrode material and the substrate, contributing to the mechanical strength of the electrode, especially under the pressure and movement that occur during battery operation.
3.Solvents
Examples: N-Methyl-2-pyrrolidone (NMP)
Role and Function:
Solvents are used to dissolve the binder and ensure that the active materials and other additives are uniformly dispersed in the slurry. N-Methyl-2-pyrrolidone (NMP) is one of the most commonly used solvents in electrode coating. It has a high affinity for polar substances like PVDF, helping to dissolve the binder and create a smooth slurry for coating. Solvents also help in controlling the viscosity of the slurry, making it easier to apply a uniform layer onto the electrode substrate. After the coating process, the solvent evaporates during the drying stage, leaving behind a well-formed electrode coating. The choice of solvent is important because it affects the ease of application and the final quality of the coating. Proper solvent use ensures that the coating process is both efficient and effective.
4.Fillers and Functional Additives
Examples: Aluminum powder, silicon powder
Role and Function:
Fillers and functional additives are often incorporated into electrode slurries to improve the overall performance of the electrode. Aluminum powder and silicon powder are examples of fillers that enhance the capacity and lifespan of the battery. Silicon, for example, is used in the anode electrode coatings to increase energy density because it has a high theoretical capacity for lithium storage compared to traditional graphite anodes. Aluminum powder can be used to enhance the thermal stability and conductivity of the electrode. These fillers contribute to the overall performance of the battery by improving the capacity, cycle life, and thermal stability. However, it is essential to balance the amount of filler used, as too much can compromise the structural integrity and performance of the electrode.
Impact of Material Selection on Coating Quality
The materials used in electrode coating directly affect the quality, performance, and longevity of the battery. Selecting the right materials ensures uniformity and optimal electrochemical behavior, which in turn influences energy density, cycle life, and overall efficiency.
1.How to Select the Right Materials for Uniform Coating
Conductive Materials:
Materials like carbon black or conductive polymers improve the electrode's electrical conductivity. Proper selection ensures uniform electron flow, helping maintain battery efficiency during charge and discharge cycles.
Binder Selection:
Binders such as PVDF (Polyvinylidene fluoride) provide excellent adhesion, ensuring the active materials stay securely attached to the conductive substrate. This improves the electrode's mechanical strength and stability during cycling.
Solvents:
Solvents like N-Methyl-2-pyrrolidone (NMP) dissolve the binder and control slurry consistency. Proper solvent choice ensures smooth, even coating and effective evaporation without leaving unwanted residues.
Fillers and Additives:
Fillers, such as aluminum powder or silicon powder, enhance capacity and thermal stability. However, excessive filler can reduce adhesion and structural integrity, so the right amount must be used.
2.Potential Issues from Improper Material Choices
Uneven Coating:
Poor slurry preparation or material selection can lead to inconsistent coating thickness, causing issues like localized short-circuiting and reduced battery efficiency.
Reduced Performance:
Low-quality conductive materials or excessive binder/filler can increase resistance and decrease capacity, leading to poor charge/discharge cycles and reduced overall battery performance.
Adhesion Problems:
Incorrect binder choice or poor mixing may result in weak adhesion between the active materials and the substrate, leading to delamination during cycling, thus affecting the battery’s lifespan.
Quality Control Issues:
Improper solvent use or volatile solvents can affect both coating quality and environmental safety, leading to uneven coatings and performance issues in the final battery product.
FAQ:
1.What is the role of conductive materials in electrode coating?
Conductive materials like carbon black ensure the electrode has the necessary conductivity for efficient energy transfer, enabling optimal battery performance.
2.How does the binder material affect the electrode coating process?
Binders such as PVDF enhance the adhesion between particles, improving electrode stability and mechanical integrity, ensuring the electrode remains intact during battery cycles.
3.Why are solvents necessary in the electrode coating process?
Solvents dissolve binders and facilitate the even dispersion of materials, making the coating process smoother, more uniform, and more efficient by controlling the slurry's viscosity.
4.What impact do fillers have on electrode performance?
Fillers like aluminum or silicon powders enhance the capacity, cycle life, and thermal stability of the battery electrodes, boosting overall battery efficiency and longevity.
Conclusion
Material selection in electrode coating is crucial for ensuring the performance and longevity of batteries. The right combination of conductive materials, binders, solvents, and fillers directly impacts the uniformity, stability, and efficiency of the electrode coating. Conductive materials ensure efficient energy transfer, binders enhance adhesion and mechanical integrity, solvents facilitate smooth and even coating, and fillers improve capacity and thermal stability. Choosing the right materials not only optimizes the coating process but also significantly enhances battery performance, including energy density, cycle life, and overall reliability. Therefore, careful material selection is key to producing high-quality electrodes that contribute to superior battery performance.
