A Complete Guide to Understand Li-Ion Battery Packs

Views: 0     Author: Site Editor     Publish Time: 2025-06-18      Origin: Site

Inquire

Li-Ion battery packs are at the heart of modern technology, powering everything from smartphones to electric vehicles. But what exactly makes them so essential? In this guide, we'll explore the science behind Li-Ion battery packs, their key components, and their applications. You'll learn how they work, their benefits, and how to maintain them for optimal performance.


What Are Li-Ion Battery Packs?

Li-Ion battery packs are energy storage units made up of several lithium-ion cells connected together to provide power for a wide range of devices. These packs are designed to deliver high energy density in a compact form, making them perfect for applications where space and weight are crucial.

The key components of a Li-Ion battery pack include the cells, which store and release energy, and the Battery Management System (BMS), which monitors the health of the pack. The BMS prevents overcharging, overheating, and ensures the battery functions safely. The connectors link the cells, while the enclosure protects the internal components from physical damage and environmental factors.

Li-Ion battery packs are used in numerous applications. They power consumer electronics like smartphones, laptops, and cameras, offering portability without sacrificing performance. In electric vehicles, these packs provide the long-lasting power needed for efficient travel. Additionally, they play a key role in renewable energy systems, storing energy generated by solar or wind to be used when needed.


Components of Li-Ion Battery Packs

Li-Ion battery packs are made up of several essential components that work together to store and deliver energy efficiently. Here's a look at the main parts:

Cells: The Heart of the Battery

The cells are the core of any Li-Ion battery pack. These small units store and release energy. Each cell has an anode, cathode, and electrolyte, allowing lithium ions to flow between the electrodes during charging and discharging. The number and type of cells used determine the battery's capacity and voltage.

Battery Management System (BMS): Ensuring Safety and Longevity

The Battery Management System (BMS) is crucial for the safe operation of the battery pack. It monitors the voltage, temperature, and overall health of each cell, balancing the load and preventing overcharging or overheating. This system ensures the battery lasts longer and operates safely, preventing dangerous situations like thermal runaway.

Connectors: How Cells Are Linked to Form a Battery Pack

Connectors are what link the individual cells together. They allow the electrical current to flow through the battery pack, connecting the cells in series or parallel depending on the desired voltage and capacity. Proper connection is key to ensuring the battery functions smoothly and delivers the expected performance.

Enclosure: Protecting Internal Components

The enclosure is the outer shell that protects the delicate internal components. It shields the cells and BMS from physical damage and environmental factors like dust, moisture, or extreme temperatures. The enclosure is typically made from durable materials like plastic or metal, ensuring the pack is sturdy while also allowing heat dissipation.

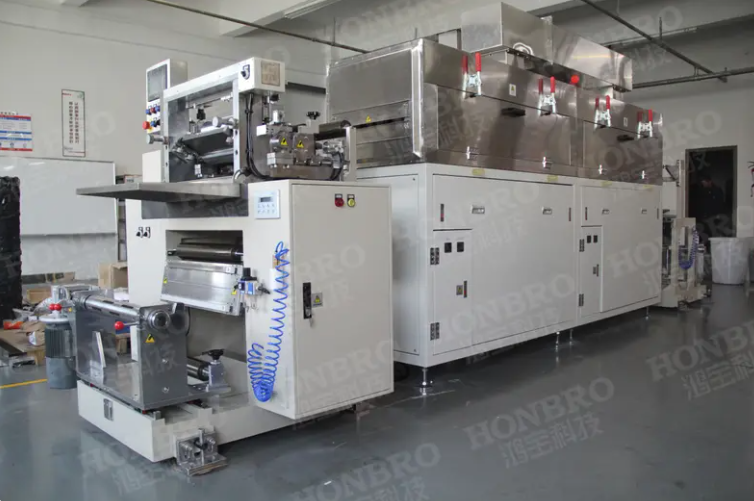

Fast Output Lab Coater for Electrode Making


How Do Li-Ion Battery Packs Work?

Li-Ion battery packs operate based on some interesting science. Here’s how they function:

The Science Behind Li-Ion Battery Operation

At the core of Li-Ion batteries is electrochemistry. Inside each cell, lithium ions move back and forth between the anode and cathode during charging and discharging. This movement stores energy when charging and releases it when discharging, providing power to devices.

The Role of Lithium Ions in Storing and Releasing Energy

Lithium ions play a crucial role in energy storage. When charging, lithium ions flow from the cathode to the anode. During discharging, the ions move in the opposite direction, creating an electrical flow that powers your devices. This process is what enables Li-Ion batteries to store and release energy efficiently.

Charging and Discharging Process

The charging process starts when the battery is connected to a power source. During charging, energy is stored as the lithium ions move to the anode. When the battery is in use, these ions move back to the cathode, releasing energy. The Battery Management System (BMS) ensures the process is smooth and safe, preventing overcharging or overheating.


The Chemistry Behind Li-Ion Battery Packs

The operation of Li-Ion battery packs is rooted in fascinating chemistry. Here’s a closer look at the key elements:

Explanation of the Movement of Lithium Ions

During charging, lithium ions move from the cathode to the anode. As the battery discharges, the ions travel back to the cathode, creating an electrical flow. This movement is what enables the battery to store and release energy.

Role of Anode and Cathode Materials

The anode and cathode are the key electrodes in a Li-Ion battery. The anode is typically made of graphite, which helps store lithium ions during charging. The cathode is composed of various lithium compounds, such as lithium cobalt oxide or lithium iron phosphate. These materials facilitate the movement of lithium ions and contribute to the battery's overall performance.

Electrolyte and Separator Functions

The electrolyte is a liquid or gel that allows lithium ions to travel between the anode and cathode. It ensures the ions can move freely, completing the electrical circuit. The separator is a thin layer between the anode and cathode. Its role is to prevent the electrodes from touching, while still allowing ions to pass through. This separation is essential for safe and efficient battery operation.


Voltage and Capacity of Li-Ion Battery Packs

Voltage and capacity are essential characteristics of Li-Ion battery packs. They directly influence performance and runtime.

What Is the Voltage of a Li-Ion Battery Pack?

Each Li-Ion cell typically has a voltage between 3.6V and 3.7V. This voltage is relatively stable throughout the battery's charge cycle, making it ideal for consistent power delivery. When multiple cells are connected, the voltage can be increased.

How Connecting Cells in Series Increases the Voltage

When cells are connected in series, their voltages add up. For example, four 3.7V cells connected in series would create a battery pack with a nominal voltage of around 14.8V. This series connection increases the overall voltage, making it suitable for higher-powered devices.

What Does Capacity Mean in Li-Ion Battery Packs?

Capacity refers to how much energy a battery can store. It is usually measured in milliamp-hours (mAh) or amp-hours (Ah). The larger the capacity, the more energy the battery can hold, which means longer runtimes.

How Capacity Affects Runtime in Different Devices

Capacity plays a significant role in determining how long a device can run before needing a recharge. For example, a smartphone battery with a higher capacity will last longer than one with a smaller capacity. The same applies to electric vehicles—larger capacity means more driving range.

How to Choose the Right Capacity for Your Needs

When selecting the right capacity, consider the device's power requirements. Smaller devices, like smartphones, typically need 2,000mAh to 5,000mAh, while larger applications, like electric vehicles, require much higher capacities. Always aim for a balance between capacity and size for optimal performance.

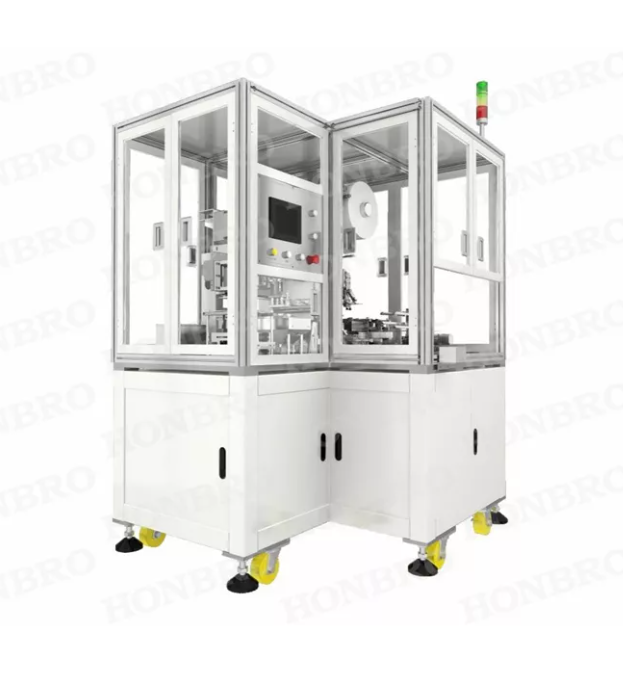

Soft Package Power Battery Ultrasonic Welding Machine for Pouch Cell Making


How Long Do Li-Ion Battery Packs Last?

Li-Ion battery packs have a limited lifespan, typically measured in charge cycles. Here's what affects their longevity:

What Is the Lifespan of Li-Ion Battery Packs?

On average, a Li-Ion battery pack lasts between 300 to 500 charge cycles. After this point, the battery's capacity starts to degrade, and it can no longer hold as much energy as before. While this is the general range, some high-quality packs can last longer with proper care.

Factors Affecting Battery Life

Several factors impact how long your Li-Ion battery pack lasts. Usage patterns play a big role—frequent charging and heavy use can shorten its life. Temperature is another factor. Exposure to high heat can damage the battery, while cold conditions can affect performance. Regular maintenance, like keeping the battery clean and checking for wear, can also help extend its lifespan.

Tips to Extend the Life of Your Li-Ion Battery Pack

● Avoid overcharging: Don't leave your battery plugged in after it reaches 100%.

● Use the right charger: Always use the recommended charger to avoid stressing the battery.

● Don't let it discharge fully: It's better to recharge when the battery drops to about 20-30%.

How to Maximize the Lifespan of Li-Ion Battery Packs?

● Regular Charging Practices: Avoid overcharging. Unplug the battery when fully charged to prevent strain.

● Storing Batteries Properly: Keep batteries in a cool, dry place. Storing them at about 50% charge helps prevent capacity loss.

● Proper Maintenance and Care: Clean terminals regularly and inspect for signs of wear or swelling. Avoid exposing the battery to extreme temperatures.


Key Features and Benefits of Li-Ion Battery Packs

Li-Ion battery packs are popular for many reasons, especially their efficiency and performance.

Why Are Li-Ion Battery Packs So Popular?

Li-Ion batteries are favored for their high energy density, which means they pack a lot of power into a small size. This makes them perfect for portable devices like smartphones and laptops. They also have a low self-discharge rate, so they retain their charge longer when not in use. Additionally, Li-Ion batteries have a long cycle life, lasting much longer than other battery types. Fast charging is another major benefit, allowing devices to spend less time plugged in and more time in use.

What Are the Advantages of Using Li-Ion Battery Packs?

Li-Ion battery packs are lightweight and portable, making them easy to integrate into a wide range of devices. They're also more environmentally friendly compared to older technologies, like lead-acid batteries, which are toxic and harder to recycle. Their efficiency and reliability make them an excellent power source for diverse applications, from consumer electronics to electric vehicles.


Applications of Li-Ion Battery Packs

Li-Ion battery packs are used in many different areas due to their high energy density and reliability.

Where Are Li-Ion Battery Packs Used?

Li-Ion battery packs are common in consumer electronics like smartphones, laptops, and tablets. Their compact size and long-lasting power make them ideal for these devices. They are also essential in electric vehicles (EVs) and e-bikes, providing efficient power for transportation. In renewable energy systems, Li-Ion batteries store energy from solar and wind power, helping manage supply and demand. Additionally, they power tools and backup power supplies, offering reliable energy in many industries.

Li-Ion batteries' ability to store and deliver energy efficiently is why they are used in so many devices and systems, from everyday gadgets to critical power backup solutions.


Safety Considerations for Li-Ion Battery Packs

Li-Ion battery packs are generally safe, but they do require proper handling to avoid potential hazards.

How Safe Are Li-Ion Battery Packs?

Li-Ion batteries come with built-in safety features like the Battery Management System (BMS) and thermal management systems. These components monitor battery performance, control temperature, and prevent overcharging, ensuring safe operation. However, like all technologies, they come with risks.

Common Risks

Overcharging is one of the most common risks. If not managed properly, it can lead to overheating or even cause a fire. Short circuits can occur if the battery's internal components become damaged, and thermal runaway, which is a rapid increase in temperature, can result in fires. These risks can be minimized with proper care and safety measures.

Safety Precautions When Handling, Installing, or Disposing of Li-Ion Batteries

When handling Li-Ion batteries, always use the proper equipment and avoid dropping or puncturing them. Proper installation is crucial, ensuring the battery is installed in a compatible device. For disposal, never throw batteries in the trash—use a certified recycling center. Be mindful of local regulations when disposing of old batteries.

What Are the Best Practices for Li-Ion Battery Pack Safety?

To ensure safety, store and charge your Li-Ion batteries properly. Always use the recommended charger and avoid charging in extreme temperatures. Regularly inspect your batteries for wear, damage, or swelling, and replace them if necessary. Using protective cases can help prevent physical damage, and keepin


Conclusion

Li-Ion battery packs offer high energy density, long cycle life, and fast charging, making them ideal for many applications. When choosing the right battery pack, consider factors like voltage, capacity, and device compatibility. Remember to care for your battery by following safety practices, proper storage, and regular inspections to ensure its longevity. Proper maintenance will keep your Li-Ion battery pack working efficiently for years to come.

Honbro has years of experience in production and packaging of Lithium-ion battery. Therefore, If you have any questions about lithium batteries, feel free to contact us anytime with your inguiries.


FAQ

Q: Can I use any charger for my Li-Ion battery pack?

A: No, always use the charger recommended by the manufacturer to avoid damaging the battery or causing safety issues.

Q: How do I know when to replace my Li-Ion battery pack?

A: If you notice reduced battery life, swelling, or overheating, it’s time to replace the battery pack.

Q: Are Li-Ion batteries recyclable?

A: Yes, Li-Ion batteries can be recycled. It's important to take them to a certified recycling center to ensure proper disposal.

Q: Can Li-Ion battery packs work in extreme temperatures?

A: Li-Ion batteries can perform poorly in extreme temperatures. Always store and use them within the recommended temperature range.
